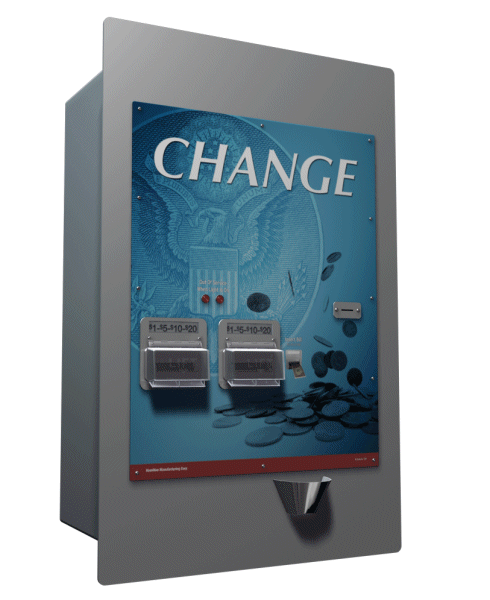

3600 Rear load Changer

3600 Rear load Changer

Heavy Duty, Rear-Load Changer:





The 3600RL Series offer the most versatility of any rear-load changer.  It can be configured with one, two or three high capacity hoppers, one or two, validators and a multi-coin coin acceptor to fit the needs of your business.
When used with the Data Access Network (DAN) you have the ability to remote into the changer and clear certain error codes and view audits.




Changes/Pays:



$1, $5, $10, $20 to Coins or Tokens



Features:




•Hamilton XE Validator (with Tokenote® acceptance)
•1000 Bill Stacker
▪Cabinet 7 Gauge Carbon Steel
▪Faceplate 7 Gauge Stainless Steel
•Weather Shield
▪2 Heavy Duty Medeco® Plug Locks
▪Audit Pro 2000 Controller
•Maximum Capacity: 2 Hopper -   9,600 Quarters
                                     3 Hopper - 14,400 Quarters
•Power: 120 VAC, 60 Hz
•Weight: 325 lbs/147.7 kg (approximate)



Options:



•Coinco®, Mars®, or CashCode® Validators
•Mars® Validator (Australia)
•Separating Stacker (with XE validator only)
•Locking Stacker Cover (with XE validator only)
•Heater (with XE validator only)
•IDX Coin Acceptor
•Micro Coin Acceptor (Australia)
•DAN Controller Kit
•Token Face Panel
•Token Hopper
  (must indicate token size when ordering)
•Locking Hopper Cover
•Out Of Service Relay Kit
•Audit Pro Controller
•Audit Pro Hand Held Remote
•Portable Thermal Report Printer
  (Works With Audit Pro 2000 Controller)



Cabinet Size:



34 7/8" H x 21 1/4" W x 14 3/8" D

88.6 cm H x 54 cm W x 36.5 cm D



Faceplate:



38 3/8" H x 24 3/4" W

97.5 cm H x 63 cm W
